How to Configure DR Tech to Send Exams to the PACS Server
Learn how to configure the DR Tech software to connect and send exams directly to the UniRadio cloud PACS server.
Prerequisites
Before you begin, you will need the following information from your UniRadio PACS server:
- AE Title
- Server IP address
- Port
Where to find this information?
Go to PACS Server Settings on the UniRadio platform and enable the PACS Port to view the connection details.
Part 1: Register the PACS Server in DR Tech

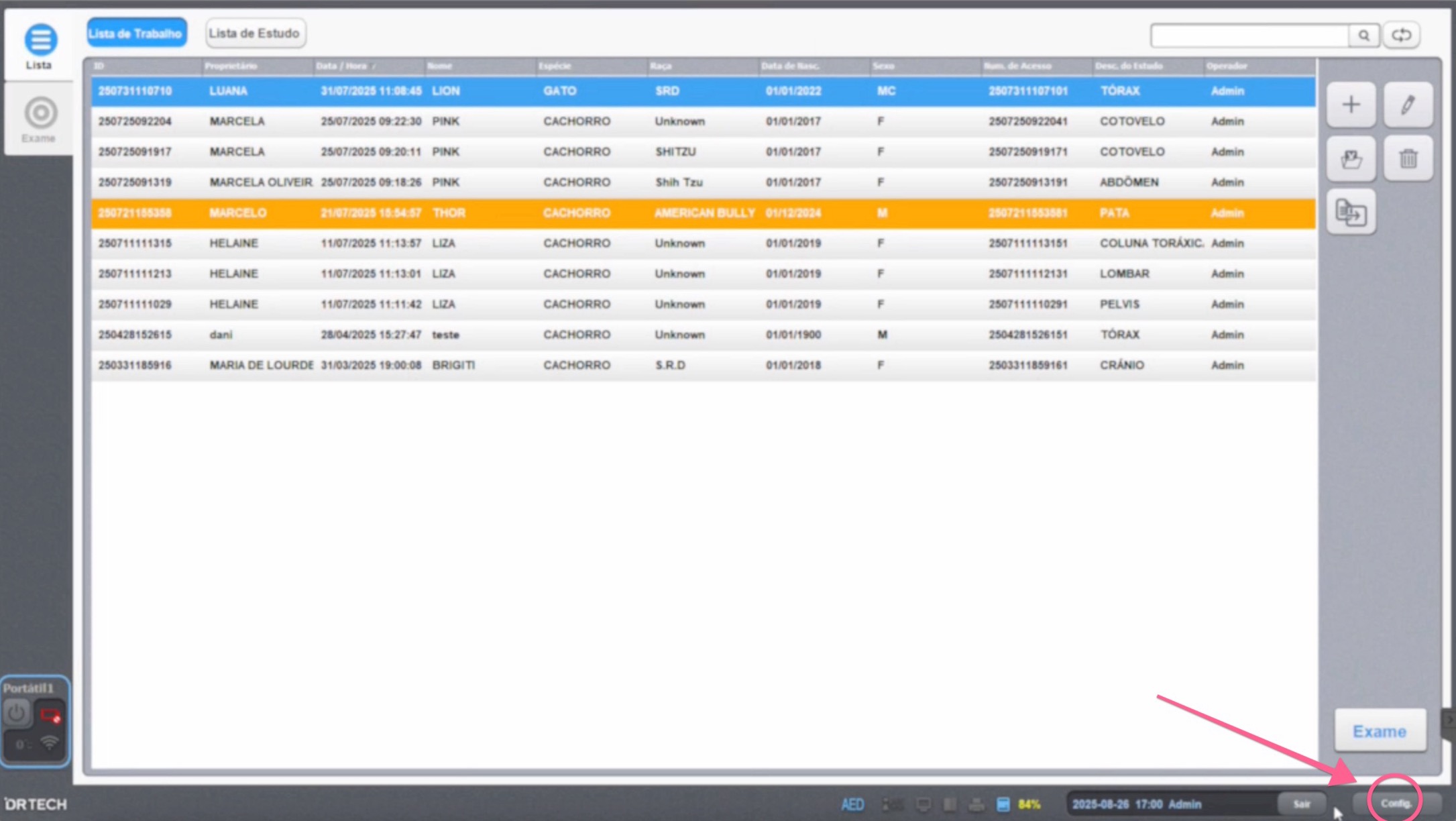

1. Open Settings
On the DR Tech main screen, click the "Config" button located on the bottom-right bar.

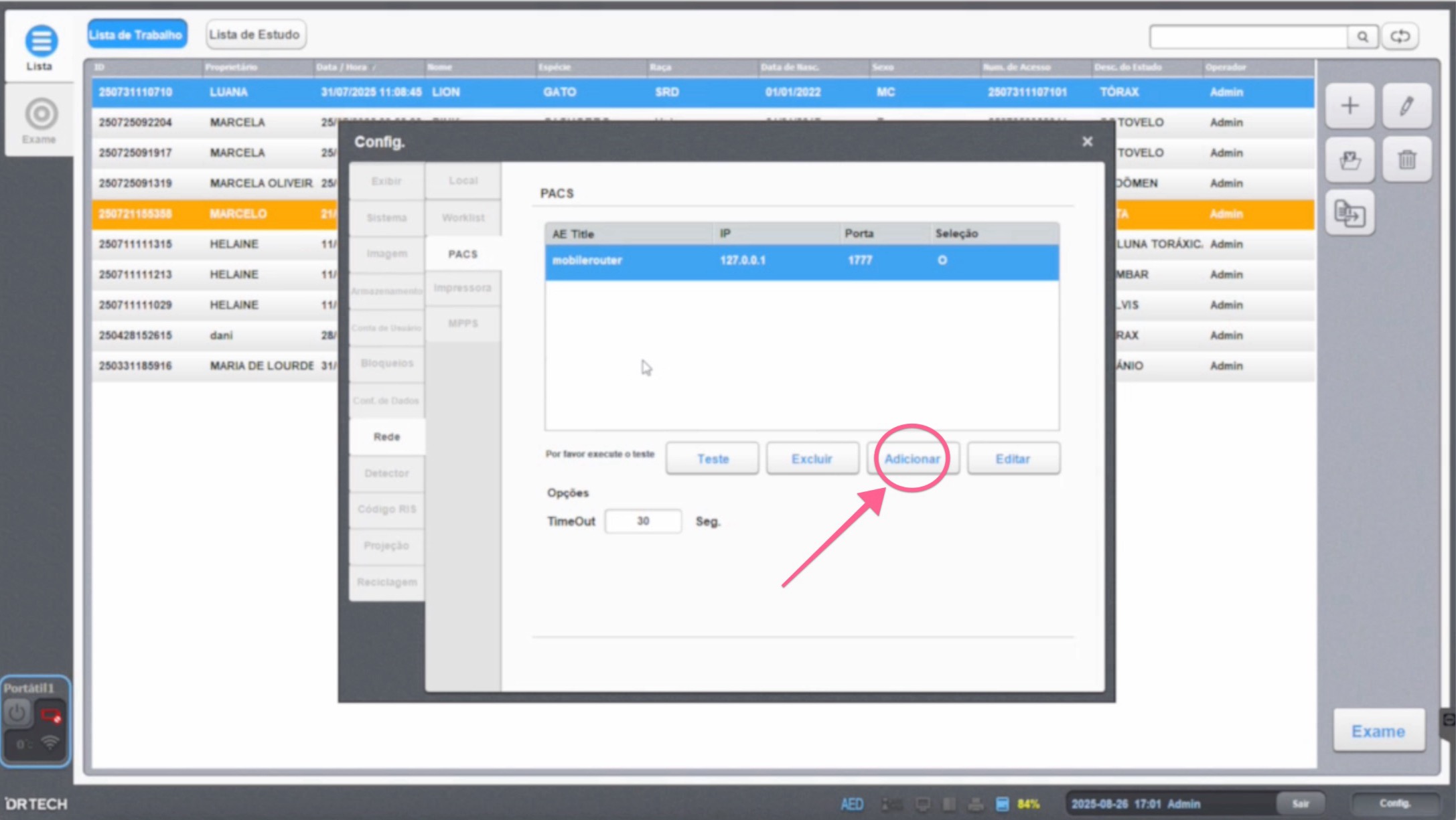

2. Open the PACS section and click Add
In the "Config." window, click "PACS" in the left sidebar. The list of registered servers will appear. Click the "Add" button to register a new server.

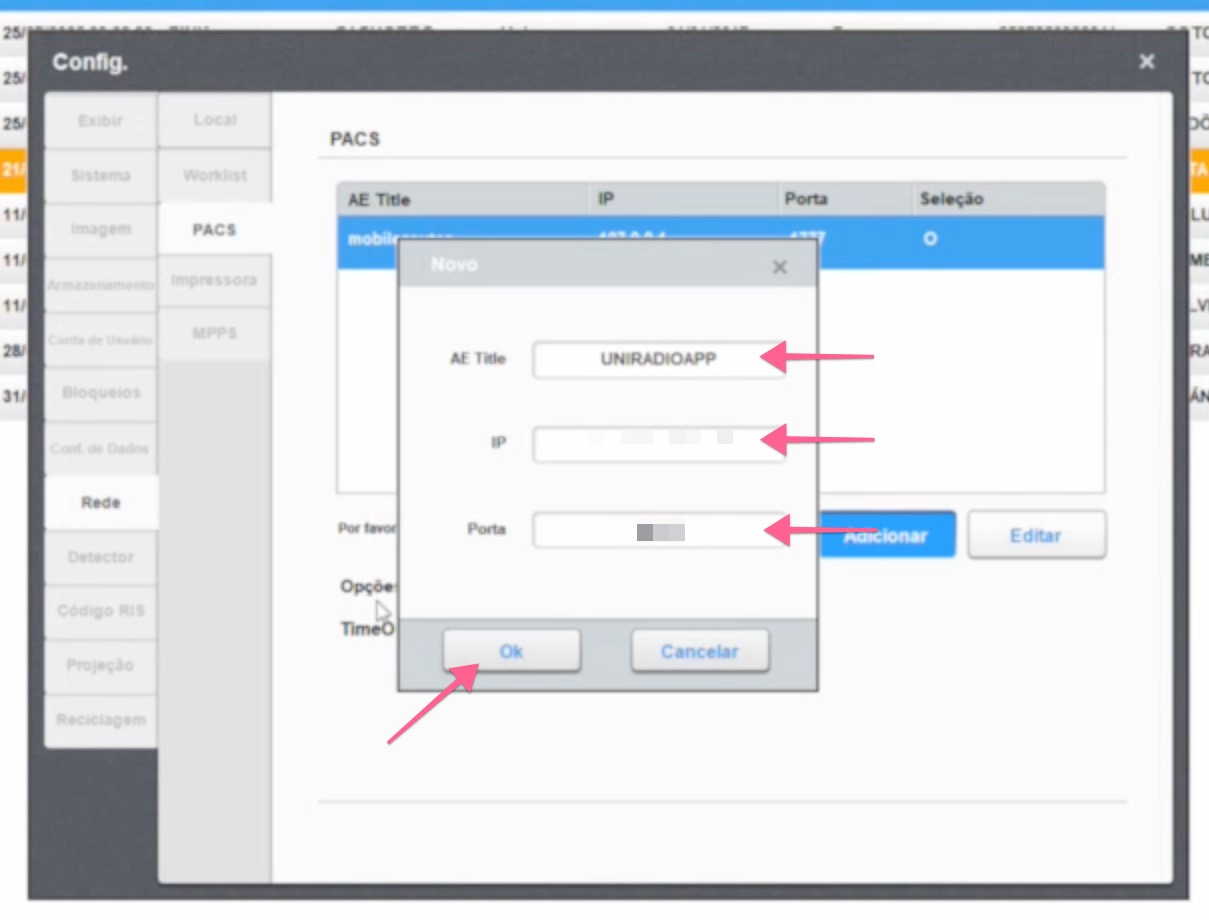

3. Fill in the PACS server details
In the "New" window, fill in the fields with the information provided by UniRadio:
- AE Title — enter the server AE Title (e.g.
UNIRADIOAPP) - IP — enter the server IP address
- Port — enter the server port
Where to find this information?
Go to PACS Server Settings on the UniRadio platform and enable the PACS Port to view the connection details.
Click "Ok" to confirm the registration.

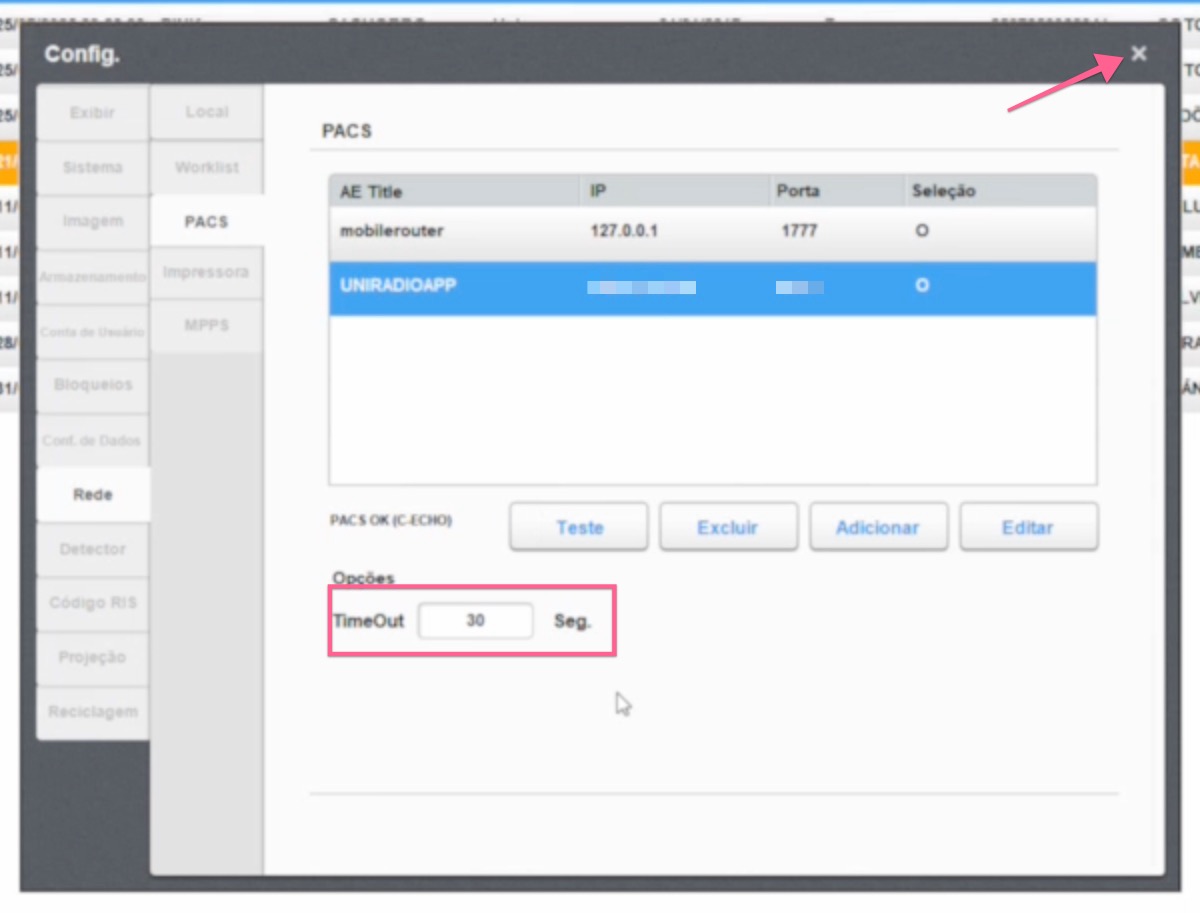

4. Verify the connection and close settings
The newly added server will appear in the list. If the connection is correct, the status will show "PACS OK (C-ECHO)", confirming that the equipment is communicating with the server.
Check the TimeOut value (default: 30 seconds) and click "X" to close the settings window.
Part 2: Send an Exam to the PACS

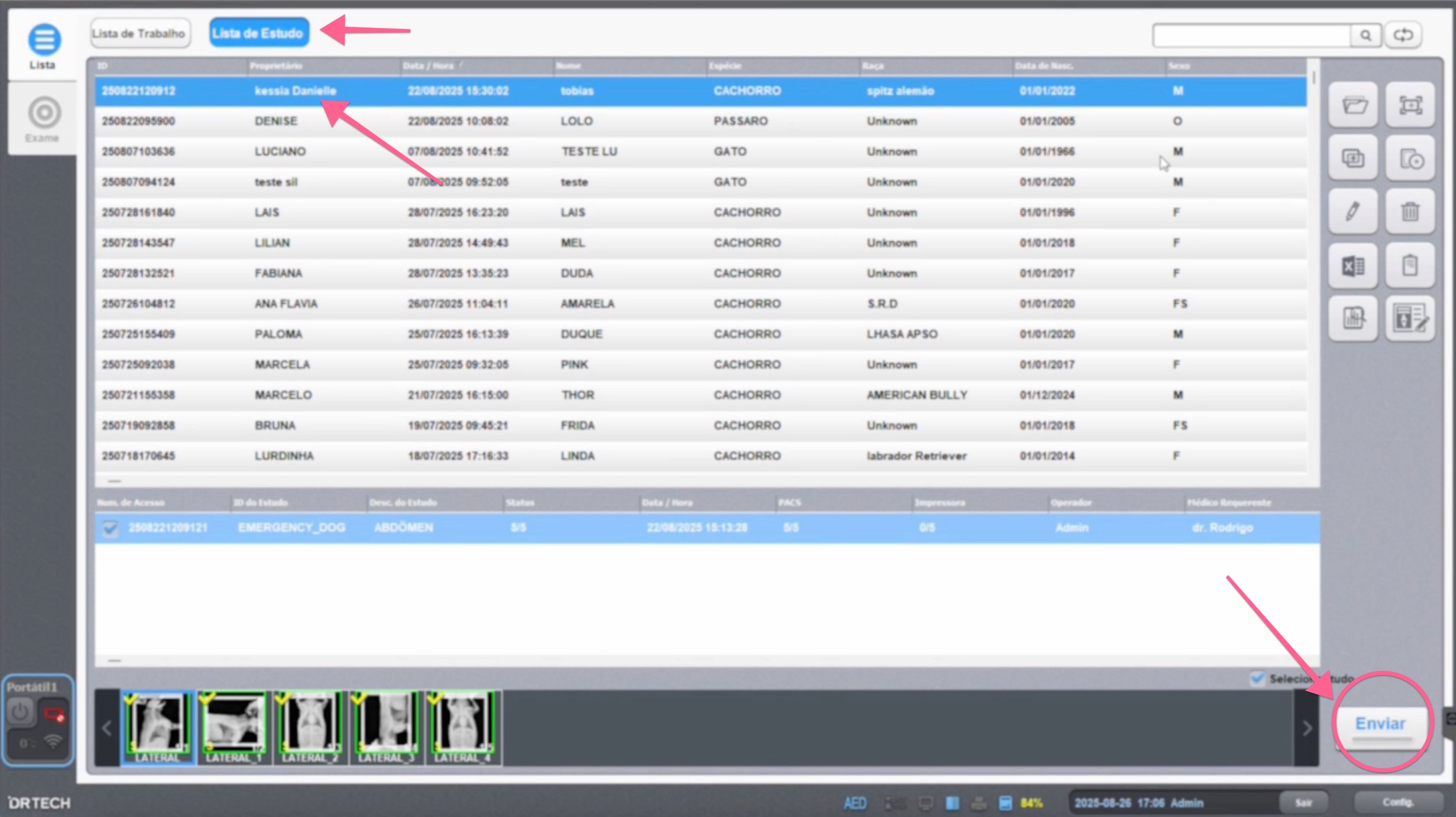

5. Select the exam and click Send
- Click the "Study List" tab at the top of the screen
- Select the patient and exam you want to send
- Click the "Send" button in the lower-right corner to transfer the images to the PACS server
The exam will be transferred to the UniRadio PACS server and will be available on the platform for reporting.
Need Help?
Check our FAQ or contact support if you run into issues configuring or sending exams through DR Tech.
